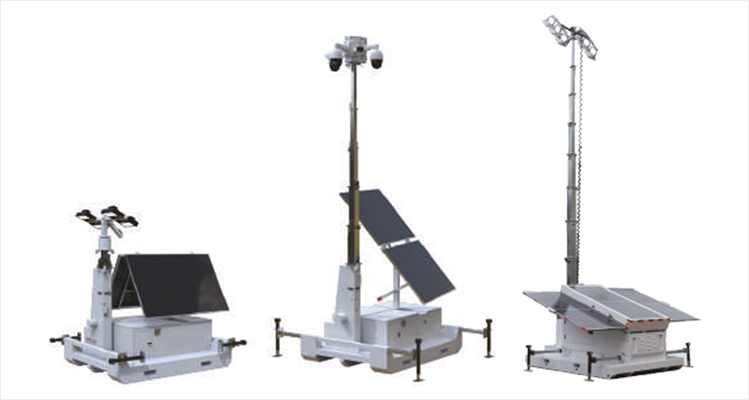

Éclairage solaire portable et surveillance
Panneau solaire rotatif
Les panneaux solaires rotatifs permettent de maximiser l'utilisation de l'énergie solaire. En outre, cette conception facilite le déploiement des remorques, car les panneaux solaires peuvent être positionnés dans le meilleur angle possible, quelle que soit l'orientation de la remorque.
Base durable
La base épaisse, dotée de trous pour chariots élévateurs et d'une forme stable, assure un déplacement facile et un déploiement sûr. Le traitement de surface galvanisé à chaud offre d'excellentes propriétés anticorrosives, ce qui le rend adapté à divers environnements.
SOLUTIONS
+PENSER +CONSTRUIRE
Spécifications
| MODELS | MB-2P-G7MHSSTD | MB-2P-G9EHSSTD | MB-2P-G7MHSPRD | MB-2P-G7MHL400PRD | MB-3P-G9EHL600D |
|---|---|---|---|---|---|
| Solar Panel Type | Monocrystalline Silicon Type, Dual Facial Version, Rotatable | ||||
| Solar Panel Wattage | 2*450W | 2*600W | 3*450W | ||
| PV Controller | Epeven/Victron MPPT | ||||
| Battery Type | Lead Acid Battery | ||||
| Battery QTY | 4*200AH, DC12V | 4*250AH, DC12V | 6*200AH, DC12V | ||
| Battery Capacity | 9600Wh | 12000Wh | 14400Wh | ||
| System Voltage | DC24V, DC Voltage Converter Installed | DC24V | |||
| Devices | CCTV Mounting Box For Surveillance System | 4*100W LED Lights, 60000Lums | 4*150W LED Lights, 90000Lums | ||
| Cables | Network Cable+Power Cable; Integrated Within The mast Or External Version Optional | Power Cable Integrated Within The Mast Or External for Option | |||
| Telescopic Mast | 7 Meters | 9 Meters | 7 Meters | 9 Meters | |
| Lifting System | Manual Winch | Electric Winch | Manual Winch | Electric Winch | |
| AC Charger | 1.5kW | 1.5kW/2.5KW | |||
| Skid Type | Durable Base, With Forklift Holes And Lift Rings | ||||
| Outrigger | 4pcs Manual Outriggers, Foldable,Y Shape | ||||
| Working Temperature | -25°C - 60°C | ||||
| Charging Time | 8.9 Hours (Theoretical) | 8.5 Hours (Theoretical) | |||
| Running Time | 72 Hours for 106W | 72 Hours for 133W | 24 Hours for 400W | ||
| Options | Cameras, 4G Router, NVR, Speaker, Remote Control, Antenna, Inverter, 360° Rotation And 90° Tilt for lights, Dimmable Lights, Lithium Battery | ||||
| Transport Dimensions | 3270*1675*2475mm | 3270*1675*2675mm | 3780*1675*2475mm | 3250*1710*2620mm | |
| Operate Dimensions | 3290*3245*6900mm | 3290*3245*8900mm | 3800*3245*6900mm | 3250*3410*8900mm | |
| Gross Weight | 1120Kg | 1150Kg | 1170Kg | 1200Kg | 1450Kg |
| Container Loading | 20GP: 6 units, 40HQ: 14 Units | ||||
Les caractéristiques techniques du produit peuvent être modifiées sans préavis.
