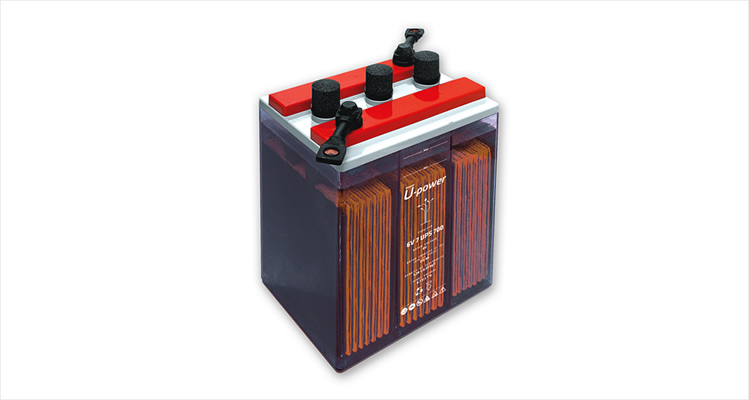

UP-UPS Series

UP-UPS Series

UPS

Design life
15 years at 20°C.
Water refilling
More than 3 years at 20°C.
IIEC 896-1
1000 cycles.
Self discharge
Approx. 3% per month at 20°C.
Operating temperature range
-20°C to 55°C, recommended 10°C to 30°C.
Full conformity with
DIN 40736-3, IIEC 896-1 & VDE 0510-2.

SOLUTIONS

+THINK +CONSTRUCT

Main uses

  • Line control centers
  • Signaling systems
  • Lighting systems
  • Cold-start of diesel generators
          of electricity
  • Emergency lighting
  • etc ...
    •    Material Safety Data Sheet

       Instruction for storage,
    control and recharging

       Torque Chart

       Product Catalog

    Specifications

    Model Capacity Ah 1.80
    UPC 20°C    		 Length
    (mm/inch)    		 Width
    (mm/inch)    		 Height
    (mm/inch)    		 Weight IR mΩ Short Circuit
    Current (A)    		 Data Sheet
    (PDF)
    C10 C1 Wet
    (kg)    		 Dry
    (kg)
    00012V 1 UPS 100 41 130 272 / 10.71 205 / 8.07 392 / 15.43 33 22 16,80 0,73
    01012V 2 UPS 200 59 219 272 / 10.71 205 / 8.07 392 / 15.43 41 30,1 8,40 1,46
    01112V 3 UPS 300 86 317 272 / 10.71 205 / 8.07 392 / 15.43 49 38,2 5,60 2,20
    01212V 4 UPS 400 114 417 272 / 10.71 205 / 8.07 392 / 15.43 58 47,3 4,20 2,93
    01312V 5 UPS 500 147 513 380 / 14.96 205 / 8.07 392 / 15.43 78 62,3 3,06 3,66
    01412V 6 UPS 600 179 619 380 / 14.96 205 / 8.07 392 / 15.43 86 70,5 2,80 4,39
    01512V 7 UPS 700 206 728 272 / 10.71 205 / 8.07 392 / 15.43 49 37,1 1,20 5,13
    0166V 8 UPS 800 247 422 272 / 10.71 205 / 8.07 392 / 15.43 53 41,9 1,05 5,86
    0176V 9 UPS 900 271 468 380 / 14.96 205 / 8.07 392 / 15.43 68 52 0,93 6,59
    0186V 10 UPS 1000 293 518 380 / 14.96 205 / 8.07 392 / 15.43 72 57 0,84 7,32
    0196V 11 UPS 1100 325 572 380 / 14.96 205 / 8.07 392 / 15.43 75 59 0,76 8,05
    0206V 12 UPS 1200 347 624 380 / 14.96 205 / 8.07 392 / 15.43 86 63 0,70 8,79
    0212V 24 UPS 2400 742 422 205 / 8.07 272 / 10.71 392 / 15.43 53 41,9 0,13 17,58
    0222V 30 UPS 3000 829 518 205 / 8.07 380 / 14.96 392 / 15.43 72 57 0,10 21,90
    0232V 36 UPS 3600 1.041 624 205 / 8.07 380 / 14.96 392 / 15.43 86 63 0,08 26,30
