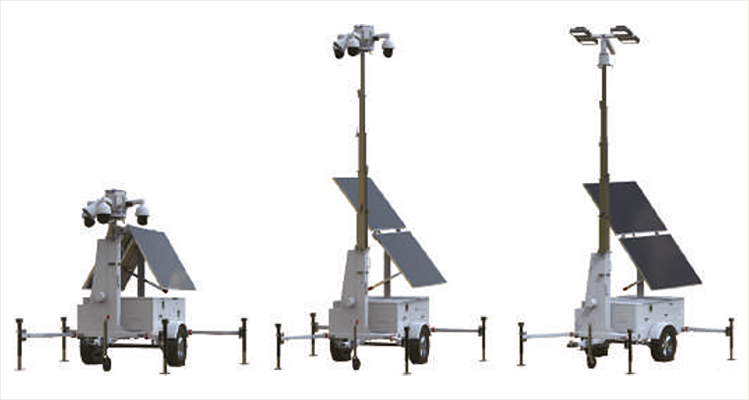

Portable solar lighting and surveillance
Rotatable Solar Panel
The rotatable solar panels help maximize solar energy utilization. In addition, this design makes it easier to deploy the trailers, as the solar panels can be positioned for the best angle regardless of the trailer´s orientationThe rotatable solar panels help maximize solar energy utilization. In addition, this design makes it easier to deploy the trailers, as the solar panels can be positioned for the best angle regardless of the trailer´s orientation
6-Side Mounting Box
Multiple sides is flexible for installing your surveillance system. The removable mounting plates with pre-drilled holes make installation easier. Additionally, the mounting box can be optionally rotated for added convenience.
SOLUTIONS
+THINK +CONSTRUCT
Specifications
MODELS | MB-2P-G7MHSST | MB-2P-G9EHSST | MB-2P-G7MHSPR | MB-2P-G9EHSPR | MB-3P-G7MHL400PR |
---|---|---|---|---|---|
Solar Panel Type | Monocrystalline Silicon Type, Dual Facial Version, Rotatable | ||||
Solar Panel Wattage | 2*450W | 2*600W | |||
PV Controller | Epeven/Victron MPPT | ||||
Battery Type | Lead Acid Battery, GEL Type | ||||
Battery QTY | 4*200AH, DC12V | 4*250AH, DC12V | |||
Battery Capacity | 9600Wh | 12000Wh | |||
System Voltage | DC24V, DC Voltage Converter Installed | DC24V | |||
Devices | CCTV Mounting Box For Surveillance System | 4*100W LED Lights, 60000Lums | |||
Cables | Network Cable+Power Cable; Integrated Within The Telescoping mast Or External Version Optional | Power Cable Integrated Within Or External Optional | |||
Telescopic Mast | 7 Meters | 9 Meters | 7 Meters | 9 Meters | 7 Meters |
Lifting System | Manual Winch | Electric Winch | Manual Winch | Electric Winch | |
AC Charger | 1.5kW | ||||
Trailer Type | US/EV/AU Standard, Signe!Axle, Foldable Tow Bar, With Forklift Holes And Lift Rings | ||||
Outrigger | 4pcs Manual Outriggers, Foldable,Y Shape | ||||
Working Temperature |
-25°C - 60°C | ||||
Charging Time | 8.9 Hours (Theoretical) | 8.5 Hours (Theoretical) | |||
Running Time | 72 Hours for 106W | 72 Hours for 133W | 24 Hours for 400W | ||
Options | Cameras, 4G Router, NVR, Speaker, Remote Control, Antenna, Inverter, 360° Rotation And 90° Tilt for lights, Dimmable Lights, Lithium Battery | ||||
Transport Dimensions | 3270*1675*2975mm | 3270*1675*3175mm | 3780*1675*2975mm | 3780*1675*3175mm | |
Operate Dimensions | 3290*3245*7400mm | 3290*3245*9400mm | 3800*3245*7400mm | 3800*3245*9400mm | |
Gross Weight | 1070Kg | 1100Kg | 1120Kg | 1150Kg | |
Container Loading | 20GP: 6 units, 40HQ: 14 Units | ||||
The technical characteristics of the product are subject to change without notice.
