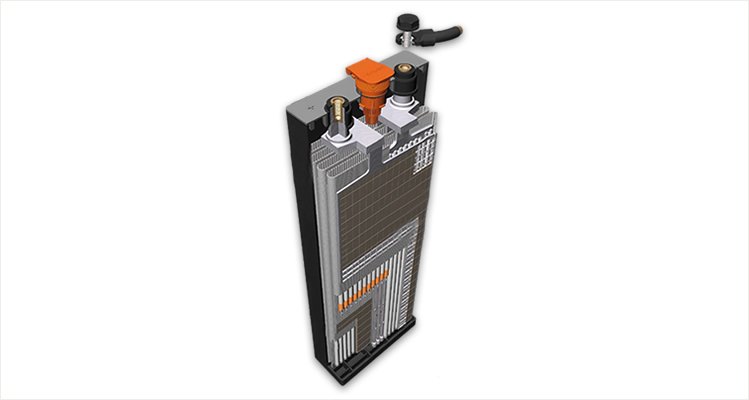

DIN - Cell Range

DIN - Cell Range

Main Features
Available in every voltage and cell arrangement configuration.
Fully plastic coated steel containers in many dimensions.
Insulated bolts and connectors increasing the user safety and simplifying maintenance and repair.
A complete range of accessories covering practically every need.
Suitable for all applications from light duty to heavy duty.

SOLUTIONS

+THINK +CONSTRUCT

Main uses

  • Forklift trucks
  • Cleaningmachines
  • Electric vehicles
  • They are available in all kinds
          of voltage configuration and foms
   Product Presentation

   Material Safety Data Sheet

   Instruction for storage,
control and recharging

   Product Catalog

Specifications

Plate Type: 60 Ah
Type Designation Nominal Capacity
Ah (C5)*		 Max cell dimensions mm*** Weight in kg**
b: 198 h1: 343
h2: 370
l
2 PzS 120 120 47 8.5
3 PzS 120 180 65 12.0
4 PzS 120 240 83 15.4
5 PzS 120 300 101 19.0
6 PzS 120 360 119 22.5
7 PzS 120 420 137 26.0
8 PzS 120 480 155 29.5
9 PzS 120 540 174 33.0
10 PzS 120 600 192 36.5
Plate Type: 80 Ah
Type Designation Nominal Capacity
Ah (C5)*		 Max cell dimensions mm*** Weight in kg**
b: 198 h1: 408
h2: 435
l
2 PzS 160 120 47 10.0
3 PzS 240 180 65 14.2
4 PzS 320 240 83 18.4
5 PzS 400 300 101 22.6
6 PzS 480 360 119 26.7
7 PzS 560 420 137 31.3
8 PzS 640 480 155 35.1
9 PzS 720 540 174 39.3
10 PzS 800 600 192 43.4
Plate Type: 90 Ah
Type Designation Nominal Capacity
Ah (C5)*		 Max cell dimensions mm*** Weight in kg**
b: 198 h1: 478
h2: 505
l
2 PzS 180 180 47 11.9
3 PzS 270 270 65 17.0
4 PzS 360 360 83 22.1
5 PzS 450 450 101 27.1
6 PzS 540 540 119 32.2
7 PzS 630 630 137 37.2
8 PzS 720 720 155 42.3
9 PzS 810 810 174 47.4
10 PzS 900 900 192 52.4
Plate Type: 105 Ah
Type Designation Nominal Capacity
Ah (C5)*		 Max cell dimensions mm*** Weight in kg**
b: 198 h1: 514
h2: 541
l
2 PzS 210 210 47 13.5
3 PzS 315 315 65 19.1
4 PzS 420 420 83 24.6
5 PzS 525 525 101 30.5
6 PzS 630 630 119 36.1
7 PzS 735 735 137 41.8
8 PzS 840 840 155 47.4
9 PzS 945 945 174 53.1
10 PzS 1050 1050 192 58.4
Plate Type: 115 Ah
Type Designation Nominal Capacity
Ah (C5)*		 Max cell dimensions mm*** Weight in kg**
b: 198 h1: 548
h2: 575
l
2 PzS 230 230 47 14.2
3 PzS 345 345 65 20.3
4 PzS 460 460 83 26.4
5 PzS 575 575 101 32.4
6 PzS 690 690 119 39.0
7 PzS 805 805 137 44.7
8 PzS 920 920 155 50.6
9 PzS 1035 1035 174 56.6
10 PzS 1150 1150 192 62.7
Plate Type: 125 Ah
Type Designation Nominal Capacity
Ah (C5)*		 Max cell dimensions mm*** Weight in kg**
b: 198 h1: 568
h2: 595
l
2 PzS 250 250 47 15.0
3 PzS 375 375 65 21.2
4 PzS 500 500 83 27.4
5 PzS 625 625 101 33.9
6 PzS 750 750 119 40.3
7 PzS 875 875 137 46.5
8 PzS 1000 1000 155 53.1
9 PzS 1125 1125 174 59.4
10 PzS 1250 1250 192 66.0
Plate Type: 140 Ah
Type Designation Nominal Capacity
Ah (C5)*		 Max cell dimensions mm*** Weight in kg**
b: 198 h1: 688
h2: 715
l
2 PzS 280 280 47 17.5
3 PzS 420 420 65 24.7
4 PzS 560 560 83 31.8
5 PzS 700 700 101 39.3
6 PzS 840 840 119 46.7
7 PzS 980 980 137 53.9
8 PzS 1120 1120 155 61.3
9 PzS 1260 1260 174 68.6
10 PzS 1400 1400 192 76.0
Plate Type: 155 Ah
Type Designation Nominal Capacity
Ah (C5)*		 Max cell dimensions mm*** Weight in kg**
b: 198 h1: 713
h2: 740
l
2 PzS 310 310 47 18.9
3 PzS 465 465 65 26.7
4 PzS 620 620 83 34.6
5 PzS 775 775 101 42.6
6 PzS 930 930 119 50.5
7 PzS 1085 1085 137 58.5
8 PzS 1240 1240 155 66.4
9 PzS 1395 1395 174 74.4
10 PzS 1550 1550 192 82.4

* According to IEC 60254- Part 1
** Filled and charged cell weights ± 5%
*** Cells’ dimensions according to IEC 60254-Part 2
