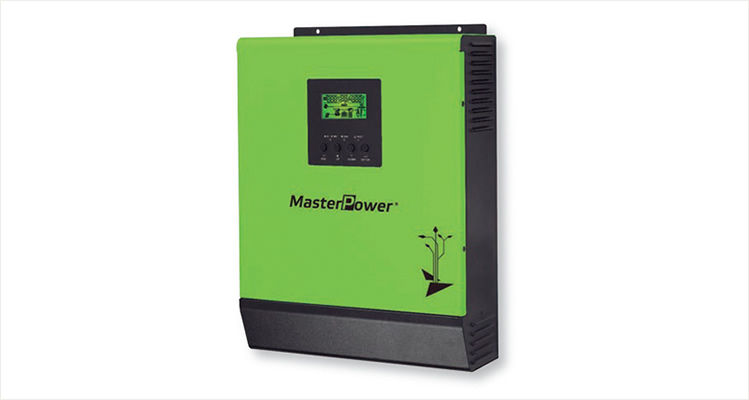

Series OMEGA
Características
Inversor solar de onda senoidal pura.
Corriente de carga seleccionable de alta potencia.
Amplio rango de entrada de DC.
Intervalo de tensión de entrada seleccionable para electrodomésticos y ordenadores personales.
Prioridad configurable de entrada AC/Solar a través de la configuración LCD.
Compatible con la tensión de red o la potencia del generador.
Reinicio automático mientras AC se está recuperando.
Sobrecarga y protección contra cortocircuitos.
Diseño inteligente del cargador de baterías para un rendimiento optimizado de la batería.
Función de arranque en frío.
En paralelo hasta 6 unidades.
SOLUCIONES
+PENSAR +CONSTRUIR
Especificaciones
| Model | Rated Power (VA/W) |
Input | Output | Battery (VDC) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Voltage (VAC) |
Frequency Range (Hz) |
AC Voltage Regulation (Batt. Mode) (VAC) |
Surge Power (VA) |
Efficiency (Peak) | Transfer Time (Personal Computers / Home Appliances) |
Parallel units | Waveform | Battery Voltage |
Floating Charge Voltage |
Overcharge Protection |
||
| MP-3K-24 | 3000 / 2400 | 230 | 50 / 60 | 230 ± 5% | 6000 | 90% | 10 ms / 20 ms | 6 | Pure sine wave | 24 | Def. 24 Max. 30 |
32 |
| MM-3K-24 | 3000 / 2400 | 230 | 50 / 60 | 230 ± 5% | 6000 | 90% | 10 ms / 20 ms | 6 | Pure sine wave | 24 | Def.24 Max. 30 |
32 |
| MP-5K-24 | 5000 / 4000 | 230 | 50 / 60 | 230 ± 5% | 10000 | 90% | 10 ms / 20 ms | 6 | Pure sine wave | 24 | Def.24 Max. 30 |
32 |
| MM-5K-24 | 5000 / 4000 | 230 | 50 / 60 | 230 ± 5% | 10000 | 90% | 10 ms / 20 ms | 6 | Pure sine wave | 24 | Def.24 Max. 30 |
32 |
| Model | Solar Charger & AC Charger | Physical | Operating Environment | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Solar Charger Type | Maximum PV Array Open Circuit Voltage (VDC) |
Maximum Solar Charge Current (A) |
Maximum AC Charge Current (A) |
Maximum Charge Current (A) |
Dimension, DxWxH (mm) |
Net Weight (kgs) | Communication Interface | Relative Humidity (Non-condensing) |
Operating Temperature | Storage Temperature | |
| MP-3K-24 | PWM | 75 | 50 | 60 | 110 | 100x272x355 | 7 | USB & RS232 | 5% to 95% | -10°C to 50°C | -15°C to 60°C |
| MM-3K-24 | MPPT | 100 | 40 | 60 | 100 | 100x272x355 | 7.5 | USB & RS232 | 5% to 95% | -10°C to 50°C | -15°C to 60°C |
| MP-5K-24 | PWM | 105 | 50 | 60 | 110 | 180x310x475 | 11.5 | USB & RS232 | 5% to 95% | -10°C to 50°C | -15°C to 60°C |
| MM-5K-24 | MPPT | 145 | 60 | 60 | 120 | 180x310x475 | 12.5 | USB & RS232 | 5% to 95% | -10°C to 50°C | -15°C to 60°C |
* Product specifications are subject to change without further notice
